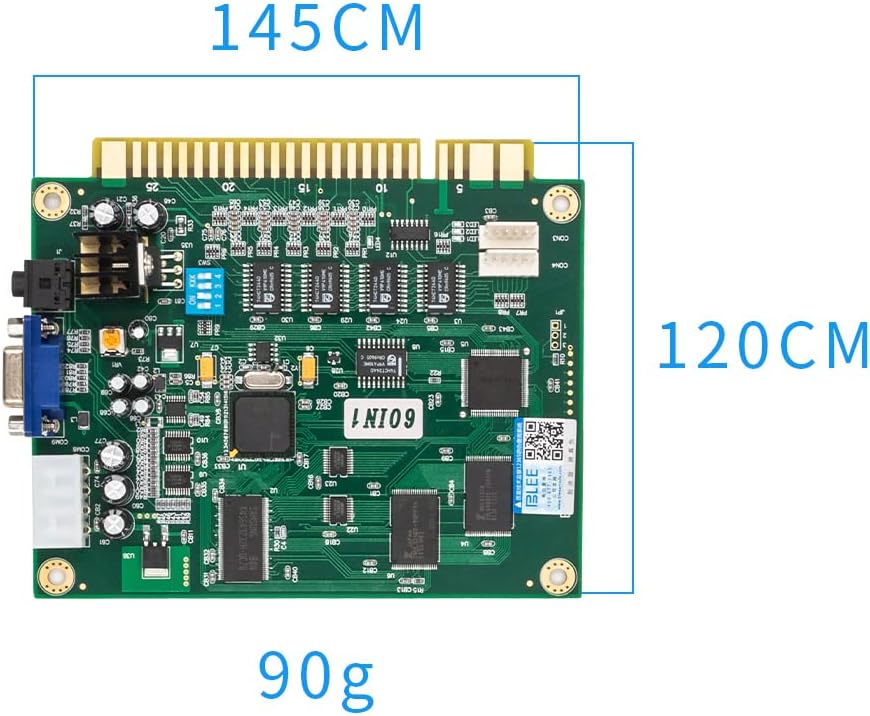

BLEE Classical Arcade Video Game 60 in 1 PCB Jamma Board for CGA VGA Output

Use abnormal situation diagnosis:❶1. Why can't I turn on the phone after connecting the cable?a.Check the status of LED1, LED2, and LED3. LED3 flashes and all others are off, which means the game board is being initialized. When you need to use VGA mode, you need to make sure that 2 of SW3 is set to ON. When you need to use CGA mode, set 2 of SW3 to OFFb.LED1, LED2, and LED3 are not on, you need to check whether the voltage of 12V and 5V is normal. PIN3 and PIN4 of JAMMA are 5V voltage, and PIN6 is 12V voltagec.Check if the JAMMA connector is plugged in the wrong wayd.Check if the JAMMA plug is clean❷Why can't I save the settings?a.Check whether the 12V input is lower than 12V or higher than 12Vb.Check whether the 5V input is lower than 5V or higher than 5Vc.Check if you have modified the settings without pressing the start key to save. Press the start button to save successfully, the screen will display (setup OK)❸Why is there no sound?a.Check whether the 12V input is lower than 12V or higher than 12Vb.Check whether the U35 power amplifier chip is overheatedc.Whether to use 3.5mm audio output without connecting to an external power amplifier★★★Product Specification:1.Item name: 60 in 1 jamma board 2.I/O Interface: 1 x JAMMA interface1 x VGA connector1 x Audio connector2 x Trackball connectors3. Voltage: 5V/12V4.Suitable: one/two players5. Size: about 143 * 110 mm / 5.63 * 4.33 inch★★★Note:1.We promise to offer high quality products and best service2.If you any problem, please contact us.

• ✪✪✪The 60 in 1 Classic Arcade Multigame board contains 60 of the most popular classic arcade games ever, which are adjusted through the built-in software menu. Another great feature is 'High Score' save, which will save the top score, even after the power is turned off.
• ✪✪✪Supports CGA (standard resolution) and VGA (high resolution) Monitors
• ✪✪✪Universal JAMMA Connector and works in vertical screen
• ✪✪✪NOTE:You can save the highest score of the game, but check if the 5V and 12V voltage of the 28P wire is normal before saving, if the voltage is lower than 5V, the save settings will not work properly
• ✪✪✪We promise to offer High Quality products & Best Service&Unconditional Free Replacement or Money Back
